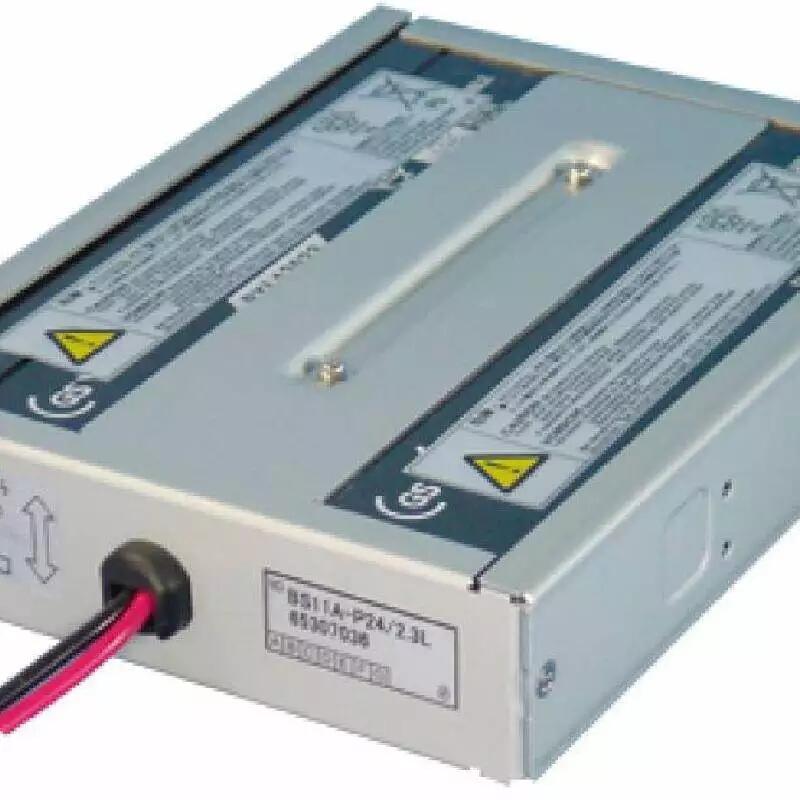

24V Lead-Acid Battery Package
? Applicable power supplies
- HNSP9-520 series
- eNSP3-450 series
- mNSP3-450 series
Connector pinout is critical to identify in that case.
? 300W for 1.5 minutes can be backuped with only a 5 inch bay space
? For higher power and longer backup time required, BS12A-P24/5.0L Lead-aid battery or BS10A-H24/2.0L Ni-MH battery is recommended.
| Compatible case size | 5 inch bay removable type | |
| Outline drawing | 146Wx37Hx190D | |
| Weight | 2.60 kg typ | |
| Applied battery | Sealed lead-acid battery (two 12V-batteries in series connection) |
|
| Nominal battery power voltage | 24 V |
|
| Rating capacity | 2.3 Ah |
|
| Built in fuse rating | 30A 32V |
|
| Operating temperature | 0 to 40 deg. C/20 to 90%RH |
|
| Storage temperature/humidity | -20 to 50 deg.C/10 to 95%RH |
|
BS10A-H24/2.0L BS11A-P24/2.3L BS12A-P24/5.0L RBS02A-P24/2.3L電源后備電池BS13A-EC400/422F電源后備電池適用于NSP4-500P-SA0-H1V電源Nipron全線工業電源批發及電源維修
Ni-MH Battery Package
|
? Applicable power supplies - HNSP9-520 series - eNSP3-450 series - mNSP3-450 series ? Built-in heater to prevent decrease of capacity at low temperature. Battery package condition signal available (at charging or backup). ? 5-minute backup time at 300W, 8.5 minutes at 200W. ? RoHS compliant |
| Compatible case size | 5 inch bay size | |
| Outline drawing | 146Wx38Hx200D | |
| Weight | 1.80 kg typ | |
| Applied battery | Sealed Ni-MH battery (1.2V x 20 in series connection) |
|
| Nominal battery power voltage | 24V |
|
| Rating capacity | 2000 mAh |
|
| Built in fuse rating | 30A 32V |
|
| Operating temperature | 0 to 45 deg.C/10 to 90% |
|
| Storage temperature/humidity |
30 days max.: -20 to 50 deg.C 90 days max.: -20 to 40 deg.C One year max.: -20 to 30 deg.C |
|
BS22A-H24/2.2L電源后備電池 適用于eNSP-300P-S20電源eNSP3-450P-S20-H1V eNSP3-450P-S20-H6V AC85V-264V 350W / 450.5W 工控機電源BS10A-H24/2.0L BS11A-P24/2.3L BS12A-P24/5.0L RBS02A-P24/2.3L電源后備電池BS13A-EC400/422F電源后備電池適用于NSP4-500P-SA0-H1V電源Nipron全線工業電源批發及電源維修
RBS02A-P24/2.3L 電源后備電池 適用于eNSP3-450P mNSP3-450電源BS22A-H24/2.2L電源后備電池 適用于eNSP-300P-S20電源eNSP3-450P-S20-H1V eNSP3-450P-S20-H6V AC85V-264V 350W / 450.5W 工控機電源BS10A-H24/2.0L BS11A-P24/2.3L BS12A-P24/5.0L RBS02A-P24/2.3L電源后備電池BS13A-EC400/422F電源后備電池適用于NSP4-500P-SA0-H1V電源Nipron全線工業電源批發及電源維修
Removable Battery Package
|
? Applicable power supplies - HNSP9-520 series - eNSP3-450 series - mNSP3-450 series ? Long life Lead-Acid battery ? Hot Swappable ? Removable at the front panel of PC ? 5-inch bay mountable |
| Compatible case size | 5 inch bay removable type | |
| Outline drawing | 148Wx42Hx245D | |
| Weight | 3.50 kg typ | |
| Applied battery | Sealed lead-acid battery 12V x 2 in series connection |
|
| Nominal battery power voltage | 24V |
|
| Rating capacity | 2.3Ah |
|
| Built in fuse rating | 30A 32V |
|
| Operating temperature | 0 to 40 deg. C/20 to 90 %RH |
|
| Storage temperature/humidity | -20 to 50 deg. C/10 to 95 %RH |
|
RBS01A-P24/2.2L 電源后備電池RBS02A-P24/2.3L 電源后備電池 適用于eNSP3-450P mNSP3-450電源BS22A-H24/2.2L電源后備電池 適用于eNSP-300P-S20電源eNSP3-450P-S20-H1V eNSP3-450P-S20-H6V AC85V-264V 350W / 450.5W 工控機電源BS10A-H24/2.0L BS11A-P24/2.3L BS12A-P24/5.0L RBS02A-P24/2.3L電源后備電池BS13A-EC400/422F電源后備電池適用于NSP4-500P-SA0-H1V電源Nipron全線工業電源批發及電源維修
Removal Battery Pack for Nonstop Power Supply
| Compatible case size | 5 inch bay removable type | |
| Outline drawing | 148Wx42Hx245D | |
| Weight | 3.50 kg typ | |
| Applied battery | Sealed type lead storage battery (two 12V batteries in series) |
|
| Nominal battery power voltage | 24V |
|
| Rating capacity | 2.3Ah |
|
| Built in fuse rating | 20A 32V |
|
| Operating temperature | 0 to 40 degrees C and 20 to 90%RH |
|
| Storage temperature/humidity | -20 to 50 degrees C and 10 to 95%RH |
|
