微型電動葫蘆民用電動葫蘆
微型電動葫蘆又名民用電動葫蘆，一般為固定式和運(yùn)轉(zhuǎn)式，適用于各種場合，可提高1000公斤以下的貨品，特別適用于高層高樓從樓下吊起較重的物品。結(jié)構(gòu)簡單、裝置便利、小巧玲瓏，且用單相電作為動力源。

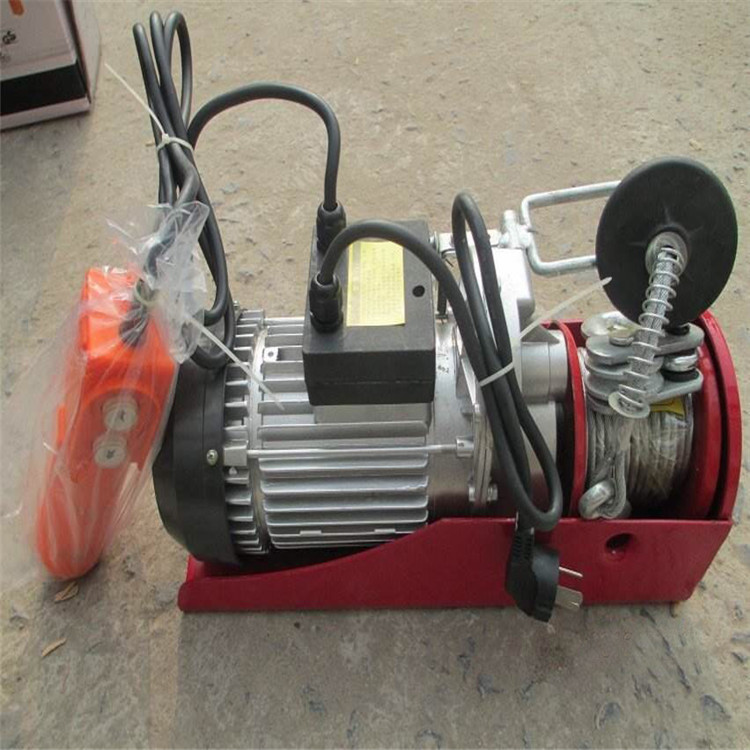

Small electric hoist
Features
1 Lightweight & compact design allow mounting convenient.
2 When rope touches the limit arm, stop automatically.
3 Induction-motor stops when the rope is reverse wand.
4 Dynamic brake designs for both static and dynamic loading.
5 It operates on household power source.
Specifications
|
Model |
PA200 |
PA300 |
PA400 |
PA500 |
PA600 |
PA700 |
PA800 |
PA1000 |
|
Rated voltage |
220v/230v |
|||||||
|
Input power |
480w |
600w |
950w |
1020w |
1200w |
1250w |
1300w |
1600w |
|
Lifting weight |
100-200kg |
150-300kg |
200-400kg |
250-500kg |
300-600kg |
350-700kg |
400-800kg |
500-1000kg |
|
Lifting speed |
10/5 m/min |
10/5 m/min |
10/5 m/min |
10/5 m/min |
10/5 m/min |
8/4 m/min |
8/4 m/min |
8/4 m/min |
|
Lifting height |
12m/6m |
|||||||
|
Packaging size (cm) |
47*37*16 |
47*37*16 |
52*42*17 |
52*42*17 |
52*42*17 |
52*45*17 |
52*45*17 |
51*34*18 |
|
N./G. weight |
22/24kg |
23/25kg |
33/35kg |
33/35kg |
33/35kg |
37/39kg |
37/39kg |
32/33kg |
