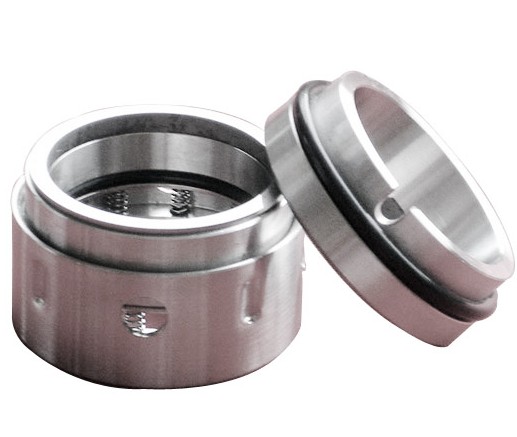

| 技術參數 | ||
| 非平衡型 | ||
| 單端面密封 | ||
| 任意旋向 | ||
| 介質溫度 | -20℃~+200℃ | |
| 介質壓力 | 0~1MPα | |
| 線速度 | ≤20m/sec |
| 規格\尺寸 | d0 | D1 | D2 | D0 | d1 | L1 | L2 | L3 | L4 | d0 |
| h6 | H11 | H8 | ||||||||
| 58U-20 | 20 | 29 | 35 | 36 | 34 | 45 | 24 | 13.5 | 9 | 3 |
| 58U-22 | 22 | 31 | 37 | 38 | 36 | 45 | 24 | 13.5 | 9 | |
| 58U-24 | 24 | 33 | 39 | 40 | 38 | 47 | 26.7 | 13.3 | 9 | |
| 58U-25 | 25 | 34 | 40 | 41 | 39 | 47 | 27 | 13 | 9 | |
| 58U-28 | 28 | 37 | 43 | 44 | 42 | 50 | 30 | 12.5 | 9 | |
| 58U-30 | 30 | 39 | 45 | 46 | 44 | 50 | 30.5 | 12 | 9 | |
| 58U-32 | 32 | 42 | 48 | 48 | 46 | 50 | 30.5 | 12 | 9 | |
| 58U-33 | 33 | 42 | 48 | 49 | 47 | 50 | 30.5 | 12 | 9 | |
| 58U-35 | 35 | 44 | 50 | 51 | 49 | 50 | 30.5 | 12 | 9 | |
| 58U-38 | 38 | 49 | 56 | 58 | 54 | 52 | 32 | 13 | 9 | |
| 58U-40 | 40 | 51 | 58 | 60 | 56 | 52 | 32 | 13 | 9 | 4 |
| 58U-43 | 43 | 54 | 61 | 63 | 59 | 52 | 32 | 13 | 9 | |
| 58U-45 | 45 | 56 | 63 | 65 | 61 | 52 | 32 | 13 | 9 | |
| 58U-48 | 48 | 59 | 66 | 68 | 64 | 52 | 32 | 13 | 9 | |
| 58U-50 | 50 | 62 | 70 | 70 | 66 | 55 | 34 | 13.5 | 9 | |
| 58U-53 | 53 | 65 | 73 | 73 | 69 | 55 | 34 | 13.5 | 9 | |
| 58U-55 | 55 | 67 | 75 | 75 | 71 | 55 | 34 | 13.5 | 9 | |
| 58U-58 | 58 | 70 | 78 | 83 | 75 | 60 | 39 | 13.5 | 9 | |
| 58U-60 | 60 | 72 | 80 | 85 | 80 | 60 | 39 | 13.5 | 9 | |
| 58U-63 | 63 | 75 | 83 | 88 | 83 | 60 | 39 | 13.5 | 9 | |
| 58U-65 | 65 | 77 | 85 | 90 | 85 | 60 | 39 | 13.5 | 9 | |
| 58U-68 | 68 | 81 | 90 | 93 | 88 | 60 | 39 | 13.5 | 9 | |
| 58U-70 | 70 | 83 | 92 | 95 | 90 | 67 | 45.5 | 14.5 | 9 | |
| 58U-75 | 75 | 88 | 97 | 104 | 95 | 67 | 45.5 | 14.5 | 9 | |
| 58U-80 | 80 | 95 | 105 | 109 | 104 | 67 | 45 | 15 | 9 | |
| 58U-85 | 85 | 100 | 110 | 114 | 109 | 67 | 45 | 15 | 9 | |
| 58U-90 | 90 | 105 | 115 | 119 | 114 | 72 | 50 | 15 | 9 | |
| 58U-95 | 95 | 110 | 120 | 124 | 119 | 72 | 50 | 15 | 9 | |
| 58U-100 | 100 | 115 | 125 | 129 | 124 | 72 | 50 | 15 | 9 |
